Bring your music outdoors with speakers that blend into your landscape
The AW10-LSUB-BR subwoofer, designed to be installed by a professional, offers an elegant, scalable platform for providing high quality audio enhancement to any outdoor area in even the harshest environmental conditions. Specially designed to withstand both extreme heat and cold, this subwoofer works great from the humid, hot conditions of summertime in Florida to the bone-chilling cold of a Minnesota winter.

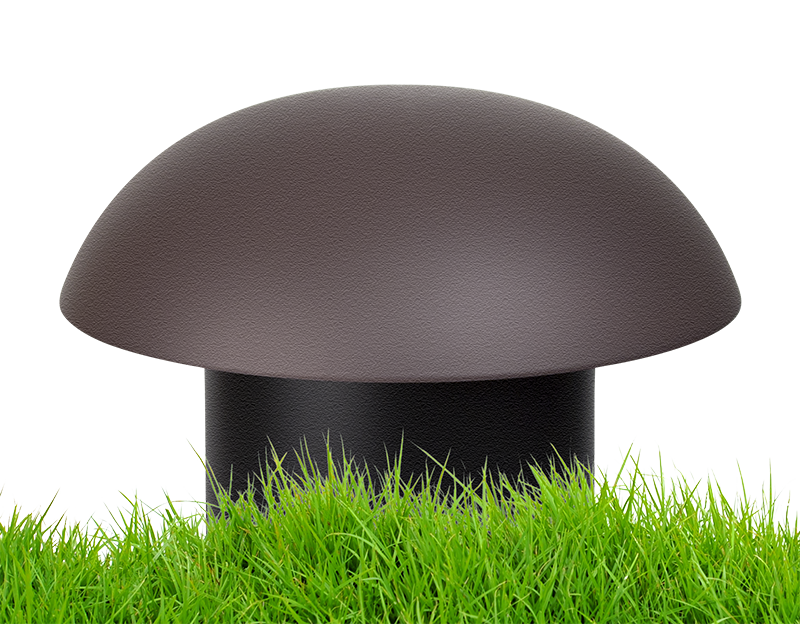

With premium components selected for both durability and audio quality, the AW10-LSUB-BR is designed to enhance audio performance with a large 10” woofer that is completely hidden out of sight with only a small canopy visible that mimics other outdoor vents and exhausts and disappears into the scenery.
By adding this full bandpass design subwoofer to your audio installation, you are able to overcome the greatest obstacle to good outdoor sound, the lack of adequate bass response. An open environment is the most difficult for achieving adequate sound levels of low frequency sounds such as the bass effects required for modern music. By adding the AW10-LSUB-BR where needed in an installation, the entire system sound quality can be easily improved.
-

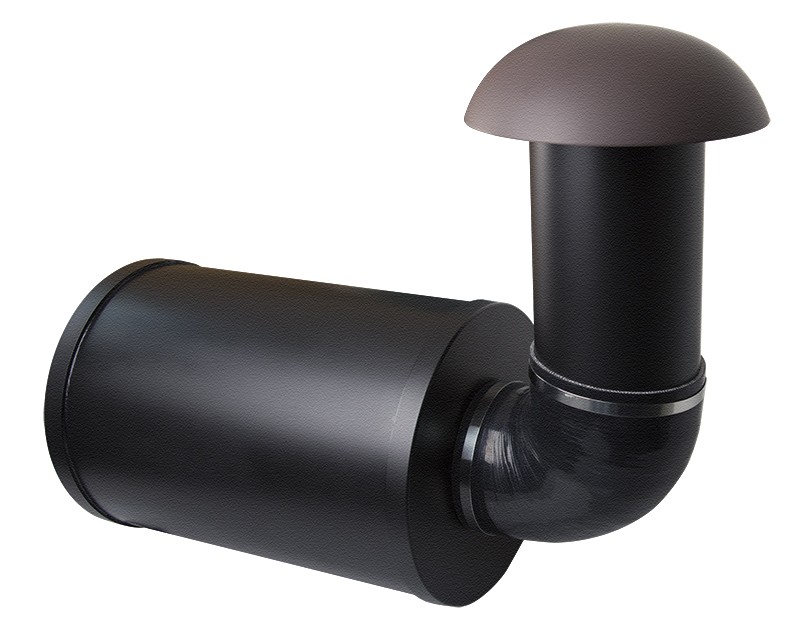

Rugged below-ground subwoofer provides superior bass while seamlessly blending into the landscape environment
-

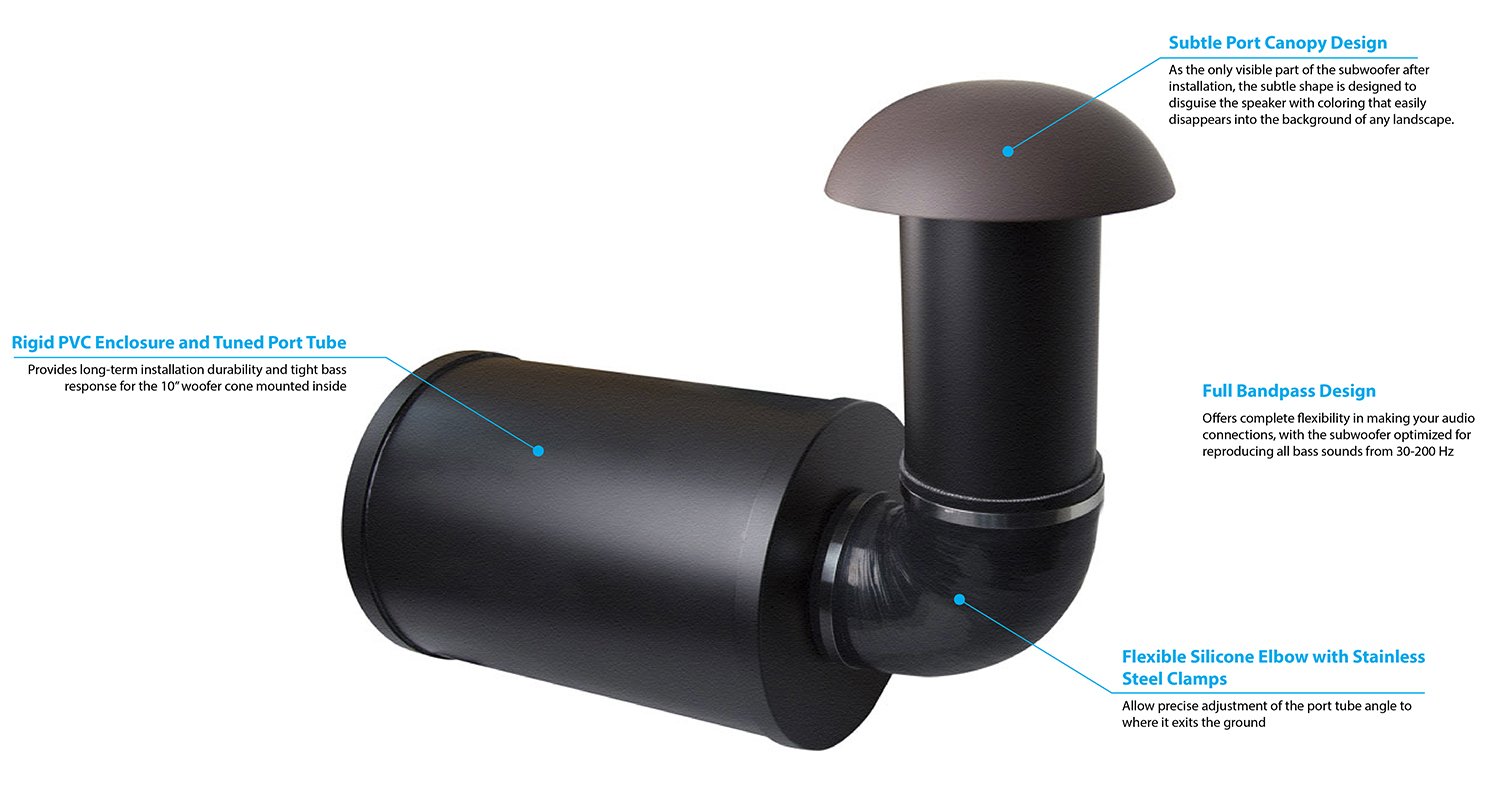

Tuned port tube that offers deep, powerful, & tight bass
-
Silicone elbow for extra flexibility in any temperature extremes
-
Full bandpass design
-
Bass chamber is PVC for long-term durability in an underground environment
-

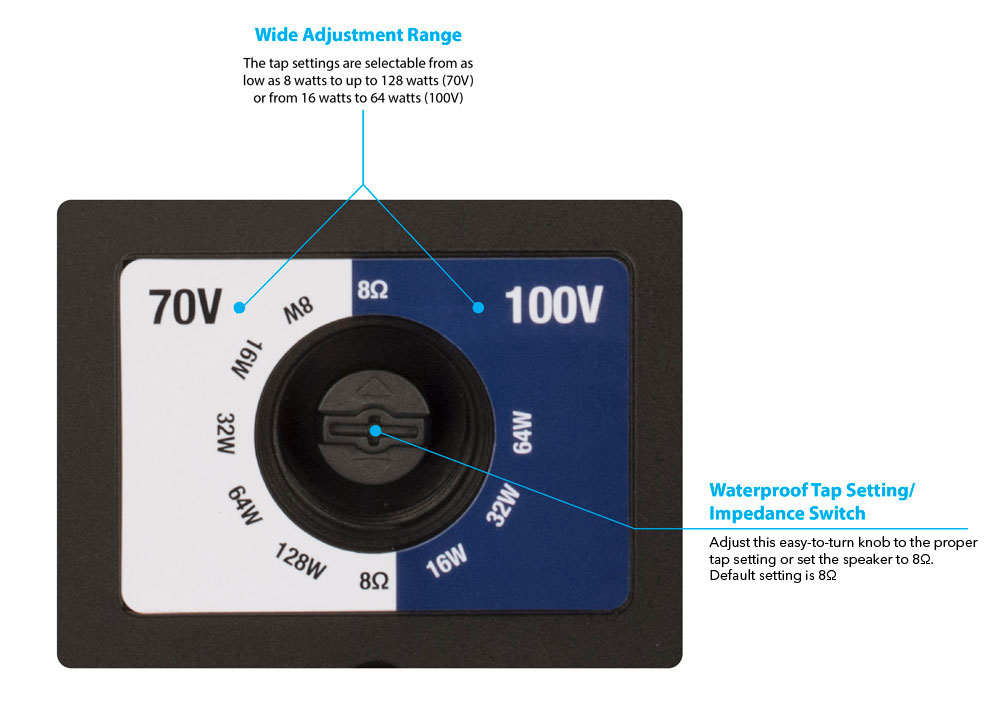

70v/100v/8Ω Design for use in any application
-
3-foot cable for easy connections with included weatherproof wire nuts
- Five year limited warranty
- Type: Full Bandpass Subwoofer
- Woofer: 10” (254mm) PP Weatherproof Cone (rubber surround)
- Frequency Response: 30Hz - 200Hz
- Impedance: 8Ω - 70/100V
- Recommended Power: 20~200W RMS
- SPL: 90dB @1w/1m
- Dimensions: Woofer Enclosure: 12.7“ dia x 18.3”L (32.3 x 46.5cm) Canopy: 10.8” dia (27.4)
- Unit Weight: 29 lbs (13.1 kg)
Product Manual: AW10-LSUB-BR Manual.pdf
Product Brief: Russound-Product Guide-AW10-LSUB-BR_Subwoofer.pdf
DSP Settings Table - Landscape Speakers:DSP Settings Table - Landscape Speakers 072022.pdf
DSP Settings for AW4-LS-BR used with Russound AW Series Subwoofers:DSP Settings for AW4-LS-BR used with Russound AW Series Subwoofers.pdf
DSP Settings for AW6-LS-BR used with Russound AW Series Subwoofers:DSP Settings for AW6-LS-BR used with Russound AW Series Subwoofers.pdf
DSP Settings for mixed models of AW Series Speakers and Subwoofers:DSP Settings for mixed models of AW Series Speakers and Subwoofers.pdf
Watch as tech expert Dr. Frank shows off Russound's outdoor landscape speakers for his fans in Chicago! The speakers take the spotlight at the 1:50 mark.
Russound's new outdoor landscape speakers were featured on CBS's "Great Day Washington" in the metro DC area. See what tech expert has to say, beginning at the 1:40 mark!
All sample XML files are set for using a stereo input signal (Left Channel to Input 1 and Right Channel to Input 2) and use Outputs 1 and 2 for stereo speakers and Output 3 for a mono subwoofer output. Feel free to make any adjustments to your particular DSP settings depending on your preferences or installation requirements.
DSP Settings for AW4-LS-BR used with Russound AW Series Subwoofers:AW4-LS-BR with AW Series Subwoofer miniDSP Example.xml
See first table below
DSP Settings for AW6-LS-BR used with Russound AW Series Subwoofers:AW6-LS-BR with AW Series Subwoofer miniDSP Example.xml
See second table below
DSP Settings for mixed models of AW Series Speakers and Subwoofers:Mixed Models AW Series Speakers and Subwoofers miniDSP Example.xml
See third table below
Recommended DSPSettings when using AW4-LS-BR speakers with any Russound AW Series Subwoofer |
||
|
Settings for the AW4-LS-BR |
||
|
|
Left Channel of Audio |
Right Channel of Audio |
|
Input |
1 |
2 |
|
Output |
1 | 2 |
|
Crossover Filter |
24/dB/Octave LR* Highpass Filter set to 200Hz |
24/dB/Octave LR* Highpass Filter set to 200Hz |
|
Input Routing Configuration in miniDSP 2x4 HD (Outputs 1 and 2 are stereo and Outputs 3 and 4 are summed mono outputs) |
|
|
|
Bandpass Output Configuration to AW4-LS-BR Output 1(Left) and 2(Right) |
|
|
Settings for the AW Series Subwoofer |
||
| Crossover Filter |
48db/Octave BW* Highpass Filter set to 30Hz 24 dB/octave BW Lowpass Filter set to 200Hz |
|
|
Bandpass Output Configuration to AW Series Subwoofer Output 3(It is outputting a summed mono signal of Inputs 1 and 2) |
|
|
|
Parametric Filter 1 |
Low Shelf Filter set to 115Hz, 5.0dB Gain with Q=1 | |
|
Parametric EQ Band 1 for Output 3 for the AW Series Subwoofer |
|
|
|
Parametric Filter 2 |
Peak Filter set to 35Hz, 1.0dB Gain with Q=1 | |
|
Parametric EQ Band 2 for Output 3 for the AW Series Subwoofer |
|
|
Recommended DSP Settings when using AW6-LS-BR speakers with any Russound AW Series Subwoofer |
||
|
Settings for the AW6-LS-BR |
||
|
|
Left Channel of Audio |
Right Channel of Audio |
|
Input |
1 |
2 |
|
Output |
1 | 2 |
|
Crossover Filter |
24/dB/Octave LR* Highpass Filter set to 150Hz |
24/dB/Octave LR* Highpass Filter set to 150Hz |
|
Input Routing Configuration in miniDSP 2x4 HD (Outputs 1 and 2 are stereo and Outputs 3 and 4 are summed mono outputs) |
|
|
|
Bandpass Output Configuration to AW6-LS-BR Output 1(Left) and 2(Right) |
|
|
Settings for the AW Series Subwoofer |
||
| Crossover Filter |
48db/Octave BW* Highpass Filter set to 25Hz 24 dB/octave BW Lowpass Filter set to 150Hz |
|
|
Bandpass Output Configuration to AW Series Subwoofer Output 3(It is outputting a summed mono signal of Inputs 1 and 2) |
|
|
|
Parametric Filter 1 |
Low Shelf Filter set to 90Hz, 5.0dB Gain with Q=1 | |
|
Parametric EQ Band 1 for Output 3 for the AW Series Subwoofer |
|
|
|
Parametric Filter 2 |
Peak Filter set to 30Hz, 1.0dB Gain with Q=1 | |
|
Parametric EQ Band 2 for Output 3 for the AW Series Subwoofer |
|
|
Recommended DSP Settings when mixing models of AW Series Speakers and Subwoofers |
||
|
Settings for the AW Series Speaker(s) |
||
|
|
Left Channel of Audio |
Right Channel of Audio |
|
Input |
1 |
2 |
|
Output |
1 |
2 |
|
Crossover Filter |
24/dB/Octave LR* Highpass Filter set to 150Hz |
24/dB/Octave LR* Highpass Filter set to 150Hz |
|
Input Routing Configuration in miniDSP 2x4 HD (Outputs 1 and 2 are stereo and Outputs 3 and 4 are summed mono outputs) |
|
|
|
Bandpass Output Configuration to AW6-LS-BR Output 1(Left) and 2(Right) |
|
|
Settings for the AW Series Subwoofer(s) |
||
| Crossover Filter |
48db/Octave BW* Highpass Filter set to 25Hz 24 dB/octave BW Lowpass Filter set to 150Hz |
|
|
Bandpass Output Configuration to AW Series Subwoofer Output 3 (It is outputting a summed mono signal of Inputs 1 and 2) |
|
|
| Parametric Filter 1 |
Low Shelf Filter set to 90Hz, 5.0dB Gain with Q=1 |
|
|
Parametric EQ Band 1 for Output 3 for the AW Series Subwoofer |
|
|
| Parametric Filter 2 |
Peak Filter set to 30Hz, 1.0dB Gain with Q=1 |
|
|
Parametric EQ Band 2 for Output 3 for the AW Series Subwoofer |
|
|
