AW6-LS-BR 6.5" Landscape Speaker

Category: Landscape Speakers

Bring your music outdoors with speakers that blend into your landscape


The AW6-LS-BR loudspeaker offers an elegant, scalable platform for providing high-quality audio to any outdoor area in even the harshest environmental conditions.  Specially designed to withstand both extreme heat and cold, the speakers work great from the humid, hot conditions of summertime in Florida to the bone-chilling cold of a Minnesota winter.

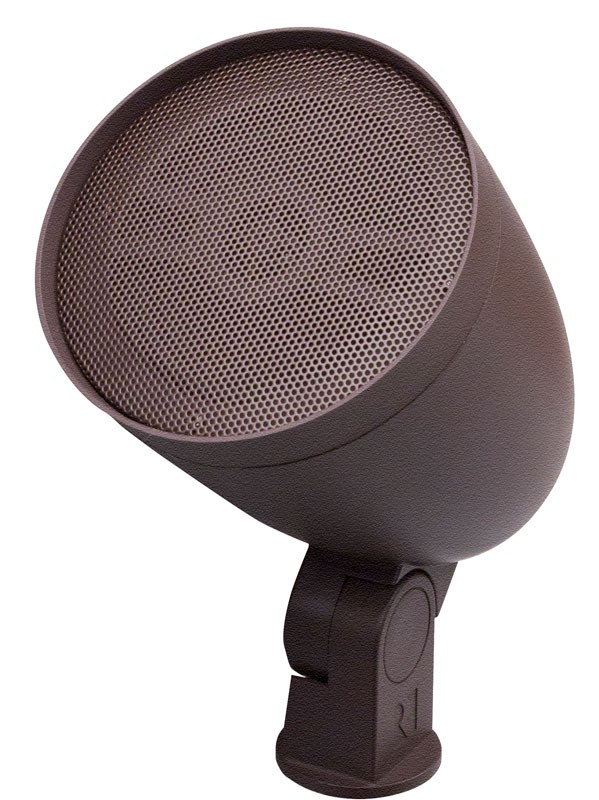

The key component of the Russound landscape audio system is the AW6-LS-BR, a 6” 2-way design satellite speaker that can be mounted anywhere in an outdoor space, from ground level to the treetops.  Its small profile and subtle coloring allow it to blend into your landscape design while its high-quality audio complement can add a new dimension of sound to your outdoor living space and bring your favorite music to your backyard, patio, pool, or lanai.


The AW6-LS-BR allows you to transform any outdoor space into an elegant, inviting space where the music you enjoy indoors can be easily enjoyed outdoors without the need for large and unsightly loudspeakers that clutter the view and limit your (and your landscape designer’s) choices when designing your perfect outdoor living areas. Mix and match with other Russound landcape speakers, including by adding extremely deep bass with one of Russound's popular outdoor subwoofer models. The extreme durability of the housing and the all-weather design allow for a simple installation that is built to last as it brings you your favorite music for all of your outdoor gatherings.



























LS SPeakers With Pool LS SPeakers With Pool

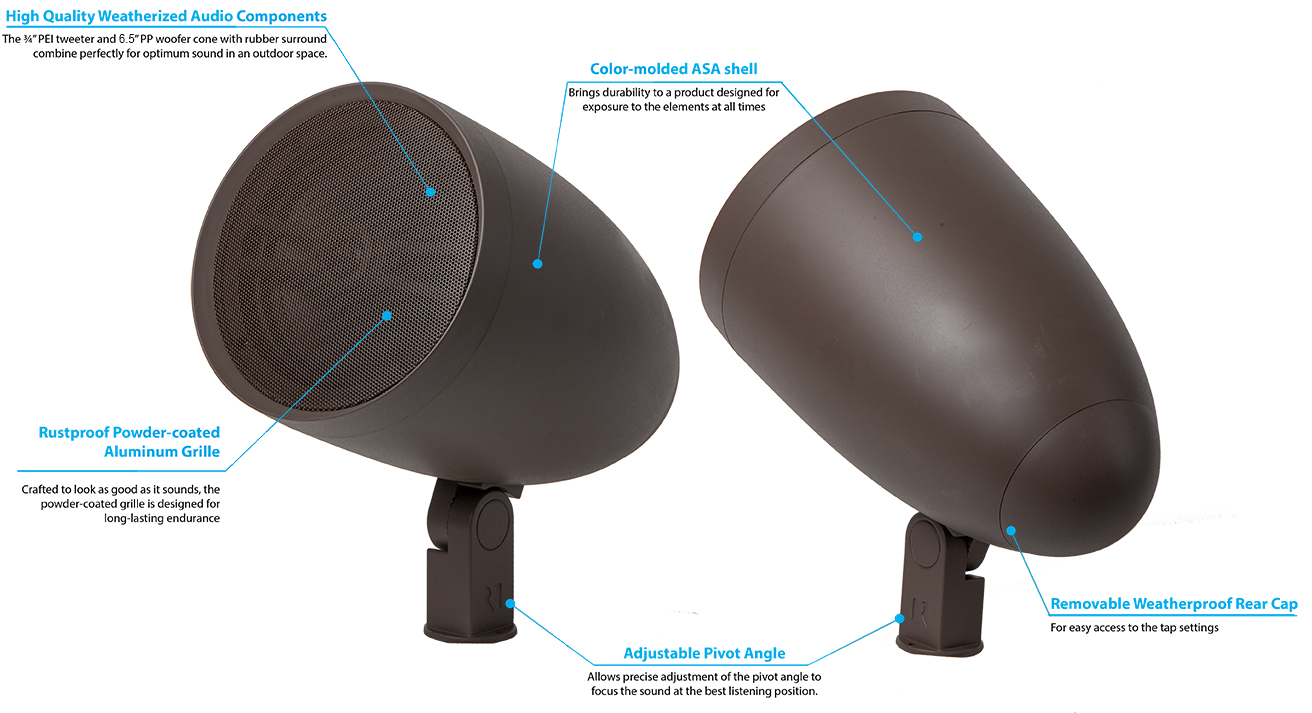

AW4 LS Callouts2

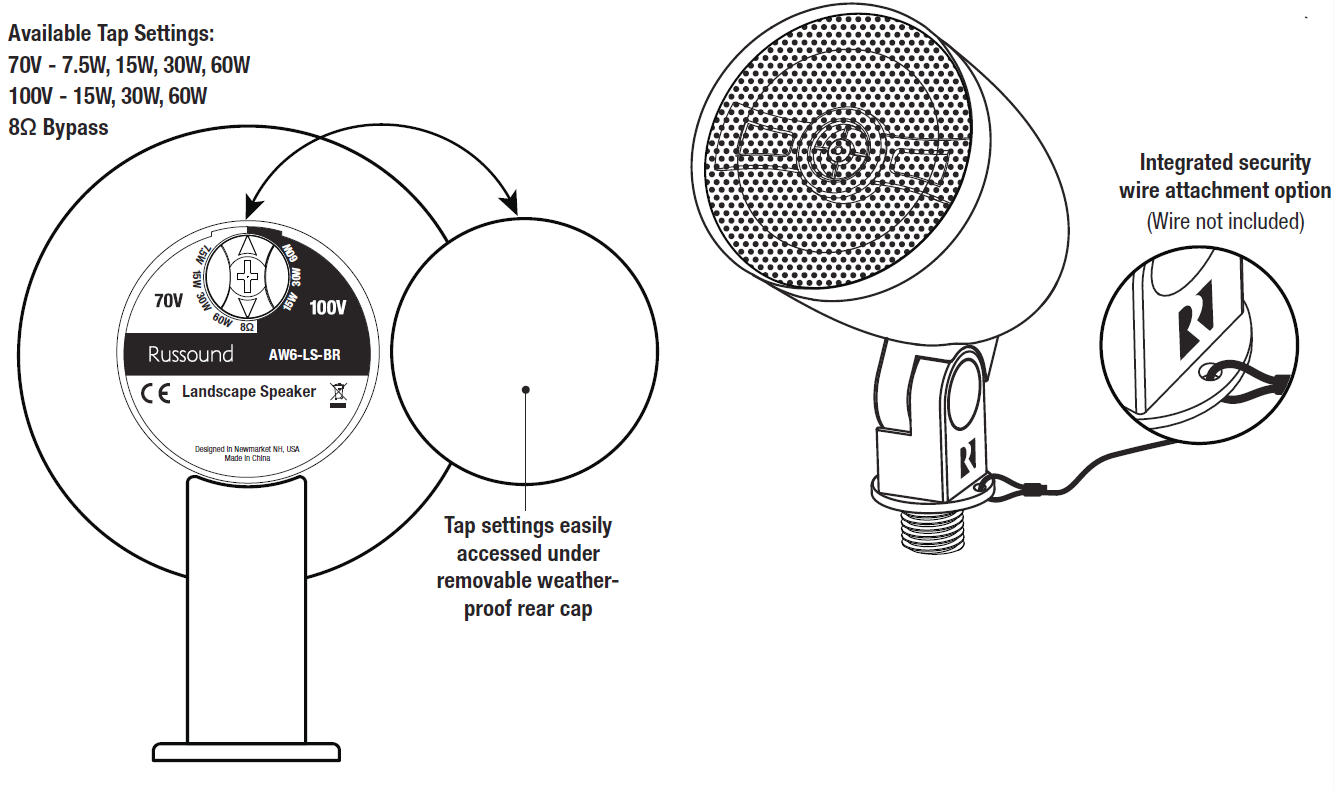

AW6tapsettings





















  • Designed for excellent sonic performance in any outdoor space
  • Rust-proof aluminum grille and color-molded composite construction won’t chip, peel, or fade over time
  • 150° vertical directional adjustment allows sound to be directed where desired in any installation
  • ASA-based material design for maximum UV protection and environmental endurance from -15°F to 160°F (-25°C to 70°C)
  • Flexible 70v/100v/8Ω design with adjustable tap settings for use in any application
  • Includes 11” mounting stake and waterproof wire nuts
  • Works with 1/2”-threaded landscape lighting mounts for limitless mounting options
  • Five year limited warranty


  • Type: 2-Way Landscape Speaker
  • Woofer: 6.5” (165mm) PP Weatherproof Cone (rubber surround)
  • Tweeter: 3/4’’ (19mm) Marine Grade PEI Dome
  • Frequency Response: 50Hz - 20kHz
  • Impedance: 8Ω - 70/100V
  • Tap Settings: 70V – 7.5W, 15W, 30W, 60W; 100V – 15W, 30W, 60W; 8Ω Bypass
  • Recommended Power Rating: 5-125W RMS
  • SPL: 90dB @1w/1m
  • Dimensions: 11 3/8" L x 7 1/5" Diameter (289 x 191 mm)
  • Unit Weight: 6.2 lbs. (2.8 kg)



 ce stamp



Product Manual: AW4-LS-BR and AW6-LS-BR Manual.pdf

DSP Settings Table - Landscape Speakers: DSP Settings Table - Landscape Speakers 072022.pdf

DSP Settings for AW6-LS-BR used with Russound AW Series Subwoofers: DSP Settings for AW6-LS-BR used with Russound AW Series Subwoofers.pdf

DSP Settings for mixed models of AW Series Speakers and Subwoofers: DSP Settings for mixed models of AW Series Speakers and Subwoofers.pdf



All sample XML files are set for using a stereo input signal (Left Channel to Input 1 and Right Channel to Input 2) and use Outputs 1 and 2 for stereo speakers and Output 3 for a mono subwoofer output.  Feel free to make any adjustments to your particular DSP settings depending on your preferences or installation requirements.



DSP Settings for AW6-LS-BR used with Russound AW Series Subwoofers: AW6-LS-BR with AW Series Subwoofer miniDSP Example.xml

See table below



DSP Settings for mixed models of AW Series Speakers and Subwoofers: Mixed Models AW Series Speakers and Subwoofers miniDSP Example.xml

See table further down the page



Recommended DSP Settings when using AW6-LS-BR speakers with any Russound AW Series Subwoofer

Settings for the AW6-LS-BR



Left Channel of Audio

 Right Channel of Audio

Input

1

Output

Crossover Filter

24/dB/Octave LR* Highpass Filter set to 150Hz

24/dB/Octave LR* Highpass Filter set to 150Hz

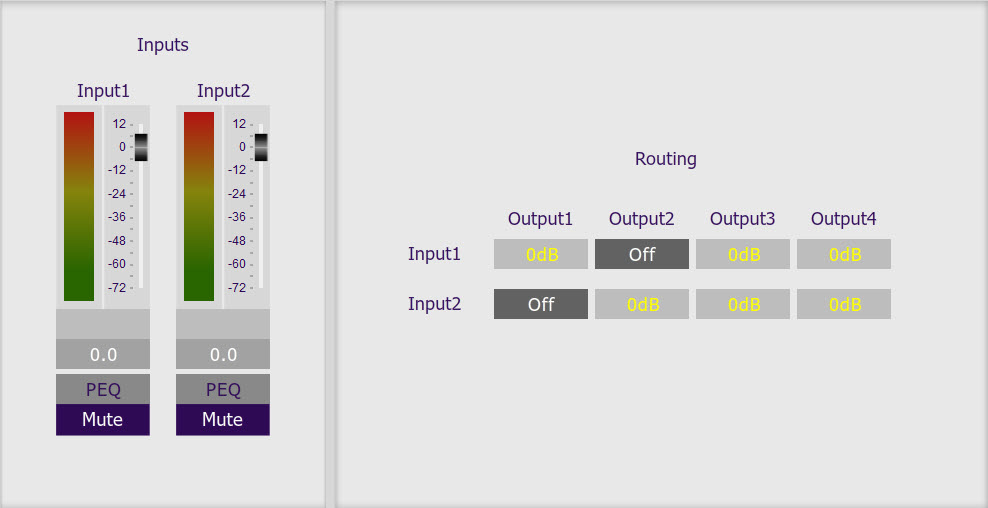

Input Routing Configuration in miniDSP 2x4 HD

(Outputs 1 and 2 are stereo and Outputs 3 and 4 are summed mono outputs)

Input Routing Stereo on 1 and 2 Mono on 3 and 4

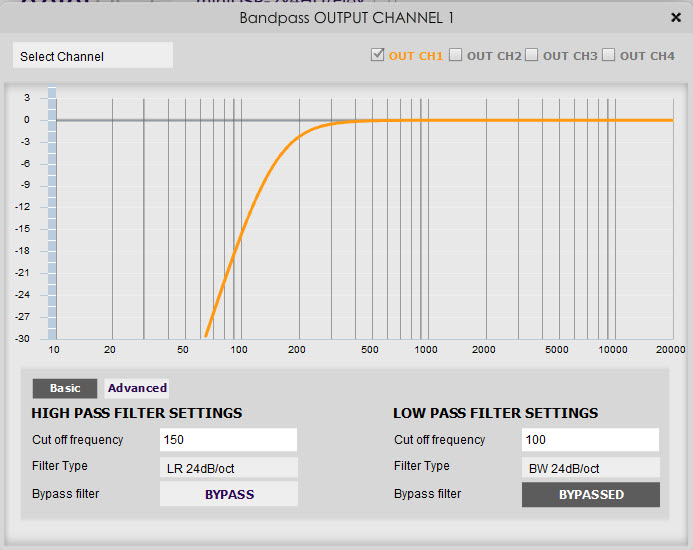

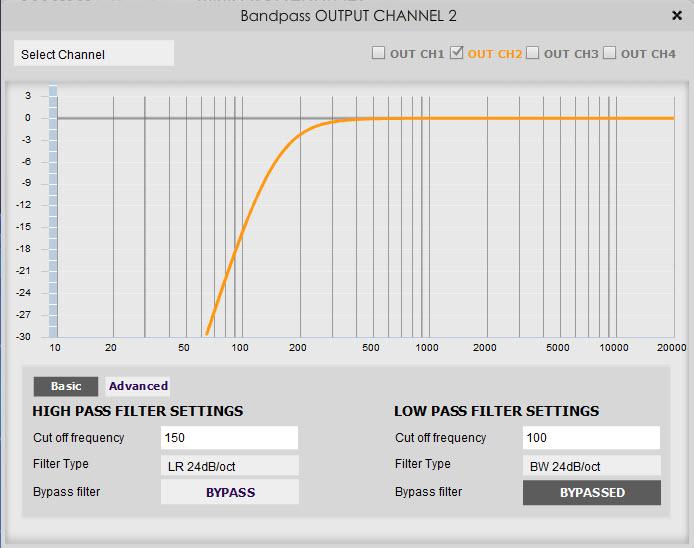

Bandpass Output Configuration to AW6-LS-BR

Output 1(Left) and 2(Right)

Output 1 AW4 LS BR Left Channel

Output 2 AW4 LS BR Right Channel

Settings for the AW Series Subwoofer

Crossover Filter

48db/Octave BW* Highpass Filter set to 25Hz

24 dB/octave BW Lowpass Filter set to 150Hz

Bandpass Output Configuration to AW Series Subwoofer

Output 3 (It is outputting a summed mono signal of Inputs 1 and 2)

Output 3 AW10 LSUB BR Mono Signal

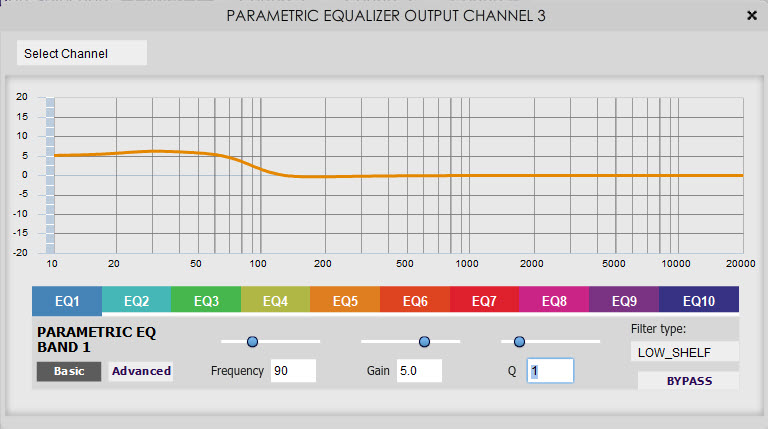

Parametric Filter 1

Low Shelf Filter set to 90Hz, 5.0dB Gain with Q=1

Parametric EQ Band 1 for Output 3 for the AW Series Subwoofer

Output 3 AW10 LSUB BR PEQ1

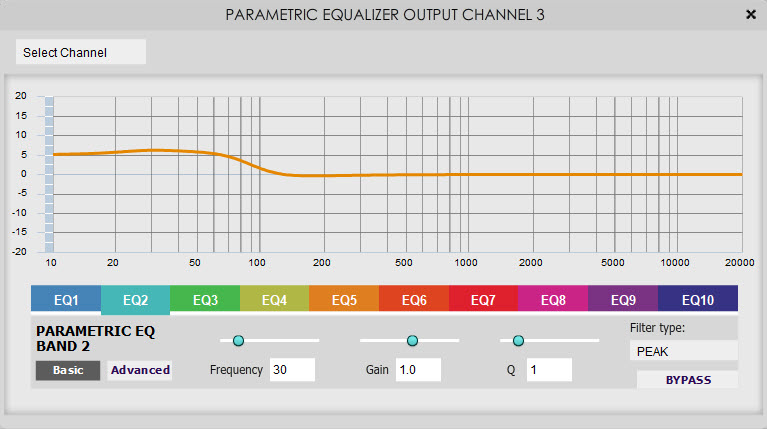

Parametric Filter 2

Peak Filter set to 30Hz, 1.0dB Gain with Q=1

Parametric EQ Band 2 for Output 3 for the AW Series Subwoofer

Output 3 AW10 LSUB BR PEQ2



  Recommended DSP Settings when mixing models of AW Series Speakers and Subwoofers

   Settings for the AW Series Speaker(s)



 Left Channel of Audio

 Right Channel of Audio

 Input

 1

2

 Output

 1

2

 Crossover Filter

24/dB/Octave LR* Highpass Filter set to 150Hz

 24/dB/Octave LR* Highpass Filter set to 150Hz

 Input Routing Configuration in miniDSP 2x4 HD

(Outputs 1 and 2 are stereo and Outputs 3 and 4 are summed mono outputs)

  Input Routing Stereo on 1 and 2 Mono on 3 and 4

Bandpass Output Configuration to AW6-LS-BR

Output 1(Left) and 2(Right)

Output 1 AW4 LS BR Left Channel

Output 2 AW4 LS BR Right Channel

Settings for the AW Series Subwoofer(s)

Crossover Filter

48db/Octave BW* Highpass Filter set to 25Hz

24 dB/octave BW Lowpass Filter set to 150Hz

Bandpass Output Configuration to AW Series Subwoofer



Output 3 (It is outputting a summed mono signal of Inputs 1 and 2)

Output 3 AW10 LSUB BR Mono Signal

Parametric Filter 1

Low Shelf Filter set to 90Hz, 5.0dB Gain with Q=1

Parametric EQ Band 1 for Output 3 for the AW Series Subwoofer

Output 3 AW10 LSUB BR PEQ1

Parametric Filter 2

Peak Filter set to 30Hz, 1.0dB Gain with Q=1

Parametric EQ Band 2 for Output 3 for the AW Series Subwoofer

Output 3 AW10 LSUB BR PEQ2
