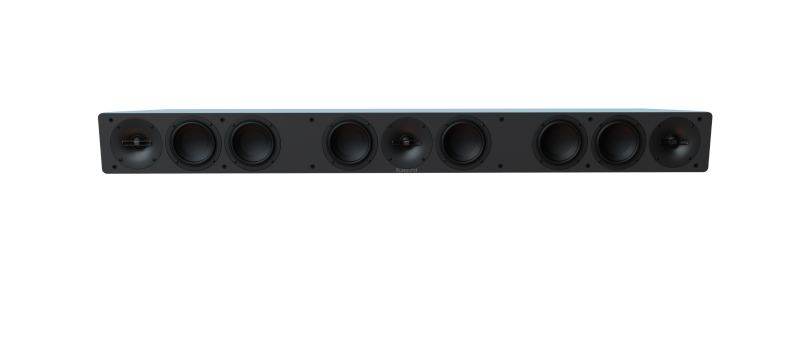

Cinema Bar 3.0 Premium Performance 3.0 Cinema Soundbar

Category: Soundbars

Coming Q2, 2024.

Add a mix of style and audio excellence to your home theater or improve your TV setup in any room of the house.

The Cinema Bar 3.0 is a passive soundbar designed for use with wall mounted TVs, boasting 100W RMS Power Handling Per Channel. These soundbars pair perfectly with the Russound AVA2.1 and AVA3.1 Mini-AVRs. Constructed of reinforced MDF with isolated audio chambers for each channel, the stylish satin black soundbar adds elegance and appeal beneath the television.

The Cinema Bar 3.0 passive soundbar is the perfect on-wall soundbar solution to pair with the Russound AVA-Series of mini-AVRs to improve the sound of any audio content, whether it be music, TV shows, or even the most dramatic cinematic moments of your favorite movies.

The large 4” polypropylene woofers with their passive radiator design for bass enhancement will provide you with sound that you never would have thought possible without a dedicated subwoofer in the room.

Constructed of reinforced MDF with isolated audio chambers for each channel, the stylish satin black soundbar adds elegance and appeal beneath the television.

  • Frequency Response: 70Hz-20kHz
  • 3 x 4” Custom designed high excursion driver
  • 3 x 1” Custom designed tweeter with proprietary waveguide and phase plug
  • 3 x 4” Passive Radiator for enhanced bass
  • 100-Watt RMS Power Handling per Channel
  • Speaker Type: 3-Channel Passive
  • Tweeter x3: 1" Soft Dome
  • Passive Radiators x3: 4" Polyprpylene
  • Woofer x3: 4" Polypropylene
  • Frequency Response: 70 Hz - 20 kHz
  • Crossover Frequency: 3,000 Hz
  • Sensitivity: 87.5db @ 2.83 v/1m
  • Max Power Output: 100 Watts Per Channel
  • Nominal Impedance: 6 ohms
  • Binding Posts: Easy To Use Push Connectors
  • Max Wire Size: 12 ga
  • Cabinet Construction: Reinforced MDF with Isolated Chambers Per Channel
  • Cabinet Finish: Satin Black
  • Grille: Black/Gray, Pin Mounted
  • Wall Mount: Included
  • TV Wall Mount: Included Inserts and 2x M8 Screws
  • Environmental Friendly Design: CARB Phase 2 Compliant
  • Product Dimensions & Weight: 50" x 5" x 3.1" (127cm x 12.7cm x 7.8cm) 12.8 lbs (5.8kg)
  • Shipping Dimensions & Weight: 53.9" x 7.7" x 9.1" (137cm x 19.5cm x 23cm) 17.6 lbs (8kg)
