XTS7 Wall-Mounted Color Touchscreen

The Russound XTS7 is an elegant, in-wall touchscreen with a 7” display and a quad-core processor running the Android™ operating system that enables you to install and run apps from the Google Play Store. The XTS7 is pre-loaded with the Russound App, perfect for controlling your compatible Russound audio system, but the XTS7 is free to control any other smart home devices in your home such as your lights, shades, etc.

By placing the powerful Russound app in a permanent location on a wall, the XTS7 gives you full and easy control of your Russound system, providing metadata feedback from compatible sources, including song titles, artist name, album titles, and album art.

The XTS7 comes with 16GB of storage for additional apps and there is a microSD card slot that allows expansion for up to an additional 256GB of storage.

The XTS7 offers unmatched convenience in controlling your smart home. The wall-mounted design is always available for your use, meaning that you’ll never have to search for your phone or tablet in order to start controlling devices in your home. You can keep your most important apps like those for your lights and music on the home screen, instantly available for your use.

The XTS7 is also easy to install and supports both wired and wireless network connections. A PoE (Power over Ethernet) connection simplifies the wiring by allowing a single network cable to carry both the network data and the power to the touchscreen. If a Wi-Fi connection is preferred, the XTS7 also offers a 12V DC connection to supply the required power.

Lock Screen Options
XTS7 now offers PIN Codes to lock your device. You can learn more about Lock Screen Options on our video HERE.
Please Note: if you are setting up a code (PIN, Password, etc.) on the XTS7 you MUST remember your code. Russound is unable to assist in recovering a lost code. The only way to do so is by using Google Account and Find My Device. Please set up your Google Account and Find My Device before setting a code or during the initial setup of the device. Learn more about that process HERE.

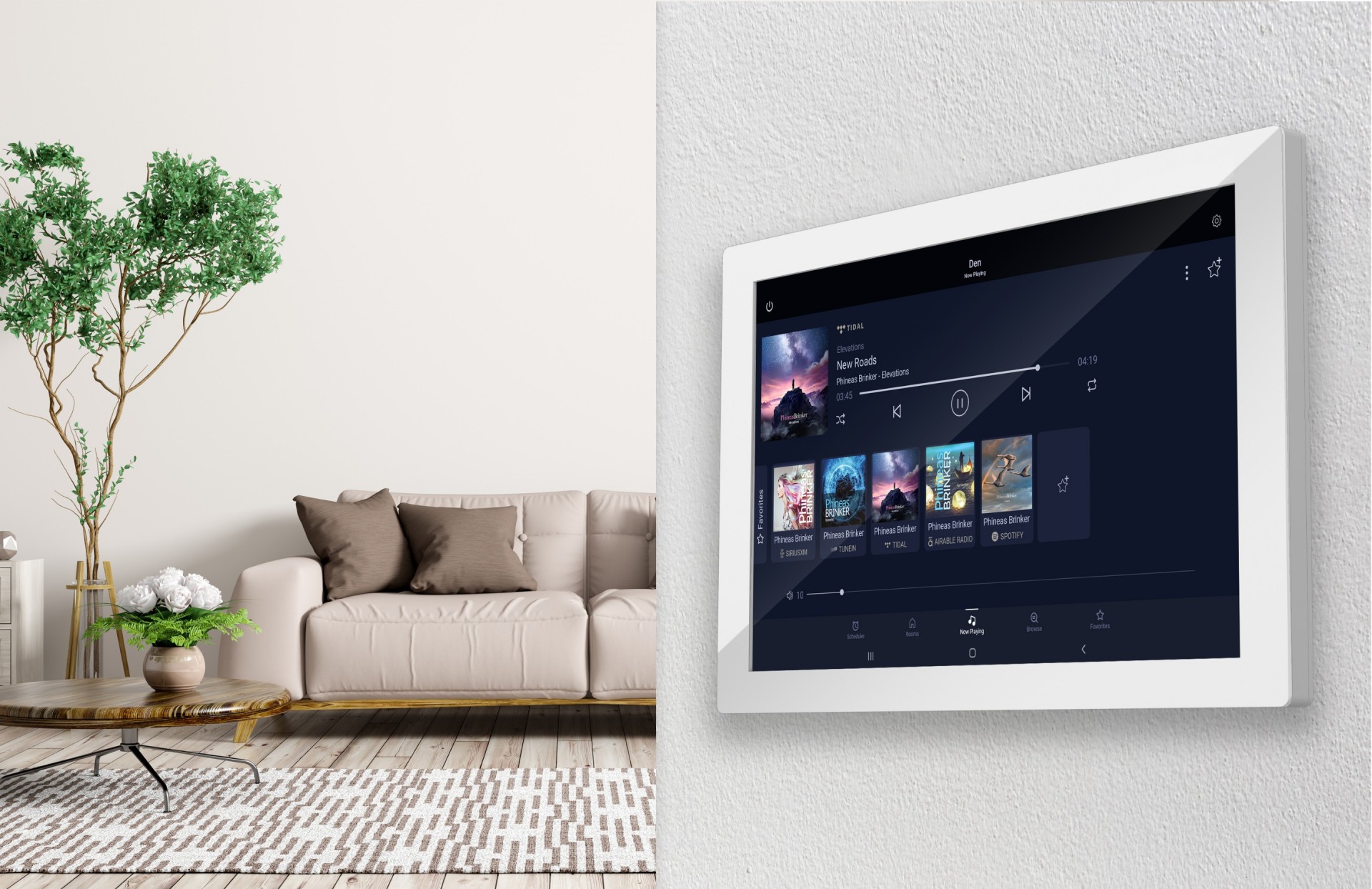

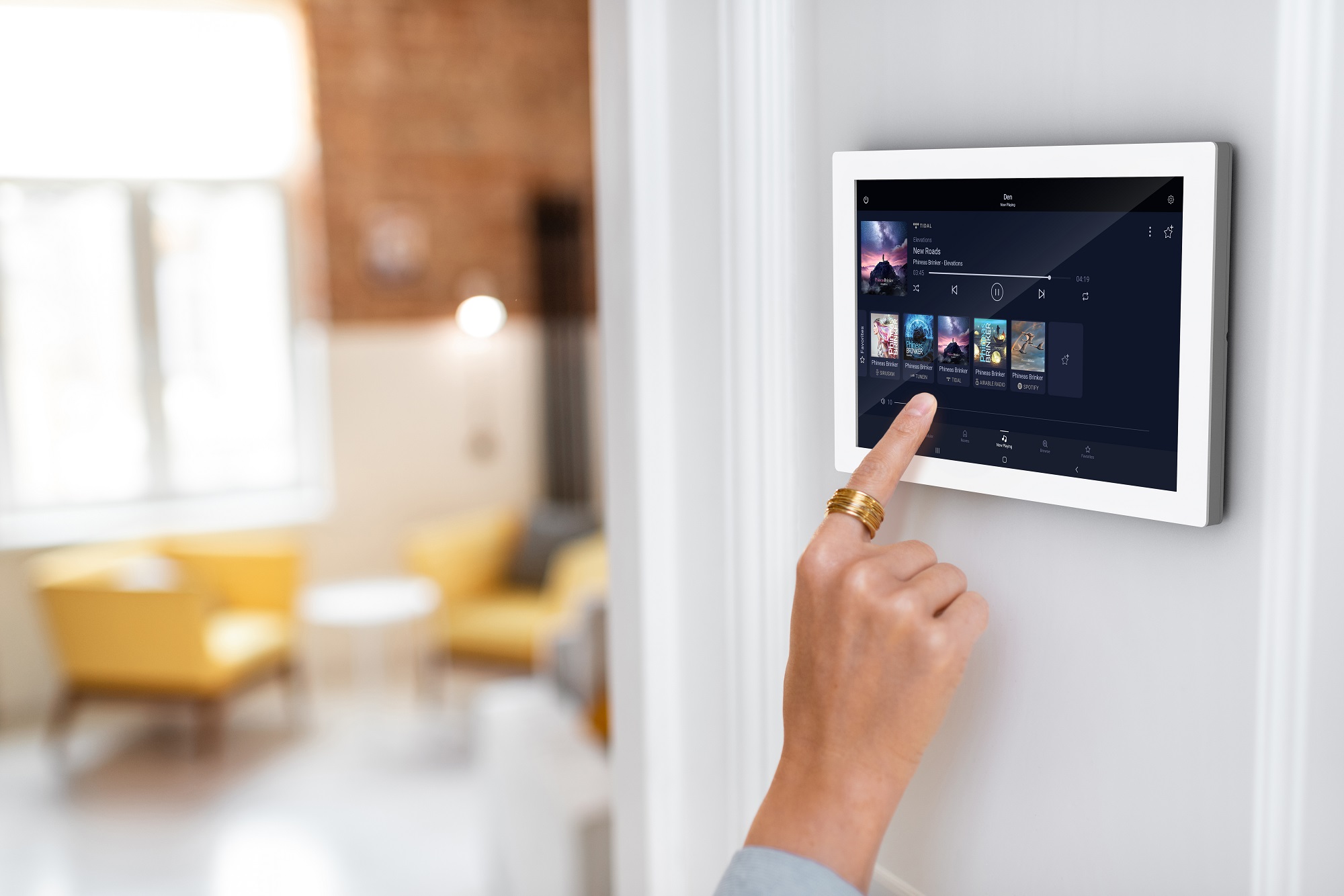

XTS7 OnWall2

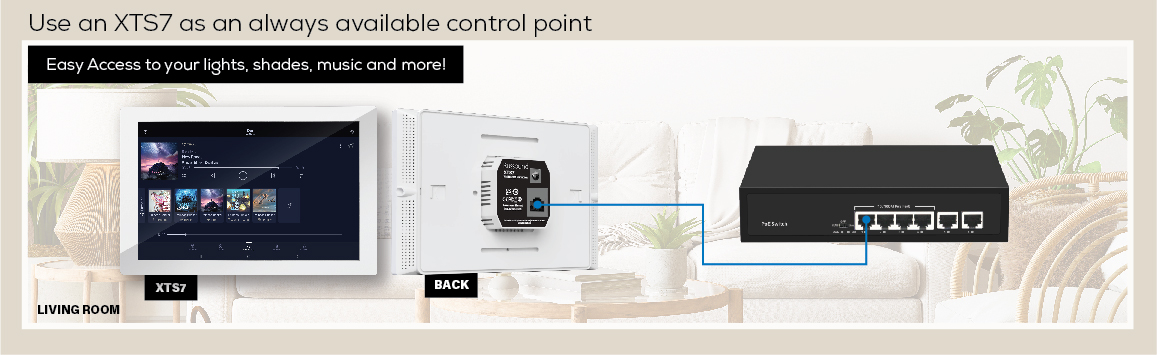

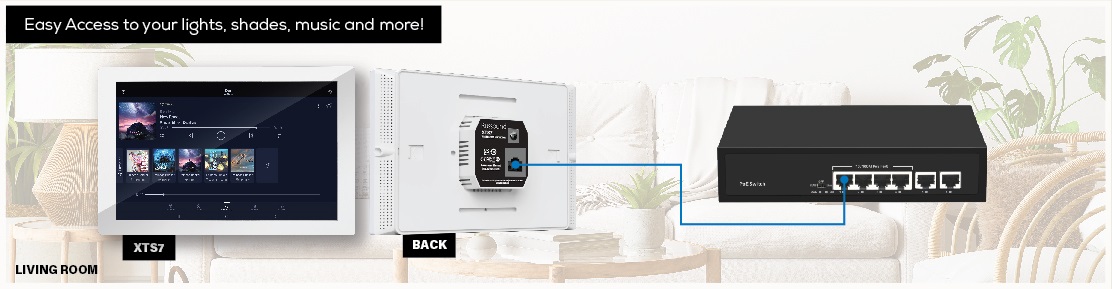

AlwaysAvailableControlPoint XTS7

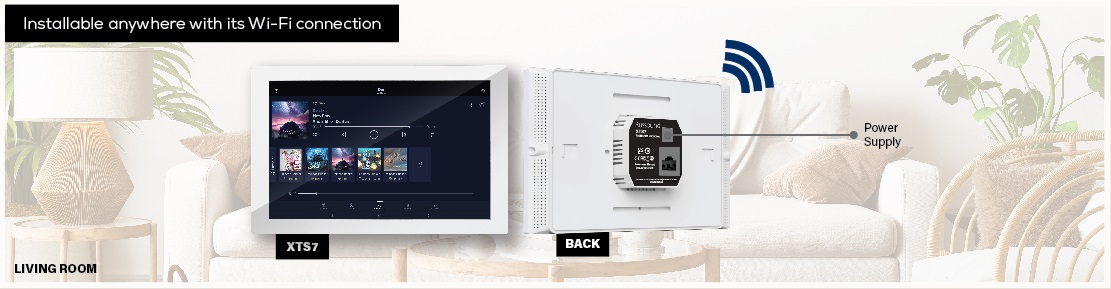

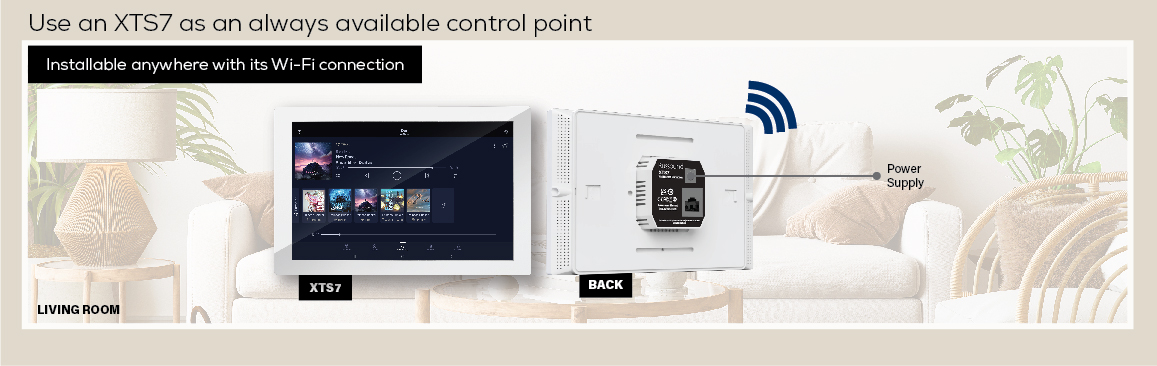

AlwaysAvailableControlPoint WiFi XTS7

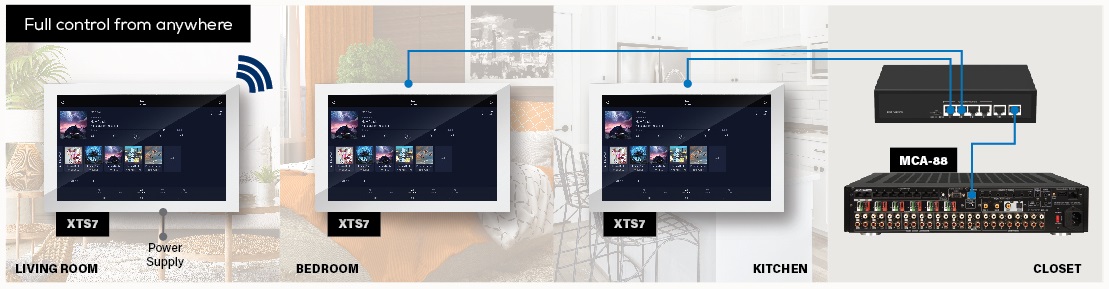

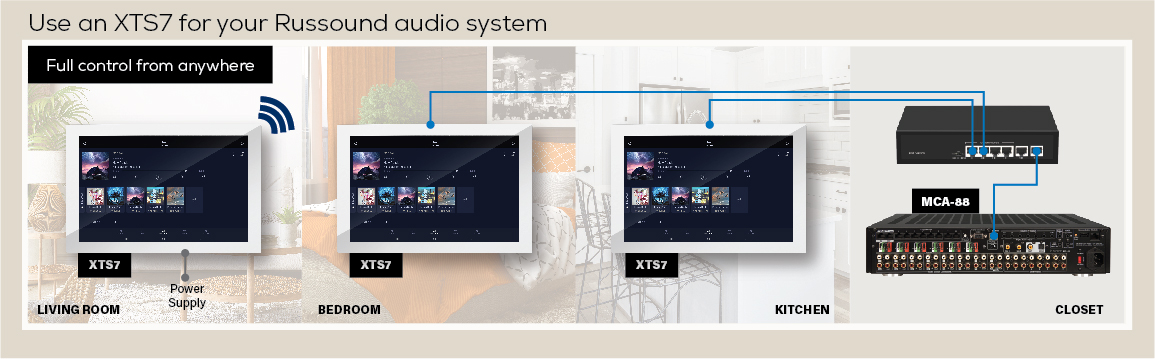

UseXTS7forRussoundAudioSystem XTS7

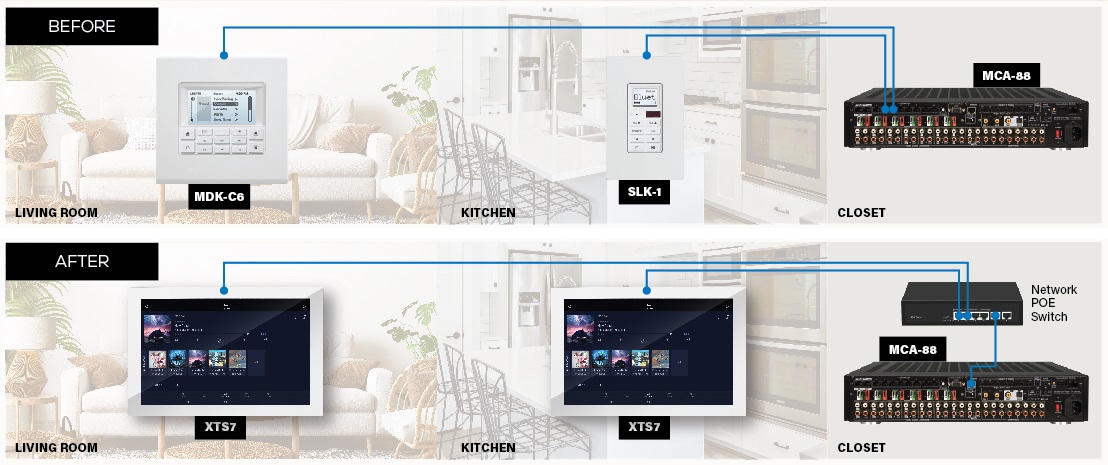

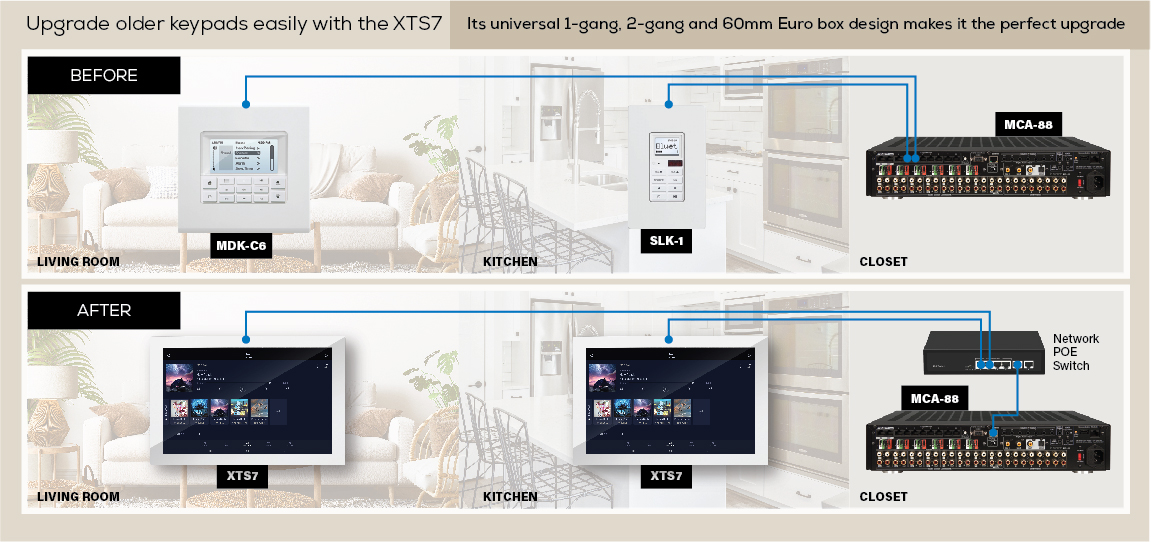

UpgradeOlderKeypadsToXTS7

Gangs2             Limited Warranty 1 year 01

  • 7" (17.8cm) Touchscreen
  • Elegant In-Wall Design
  • Android Operating System
  • Install your favorite apps from the Google Play Store
  • Russound App pre-installed to work with the MBX-AMP, MBX-PRE, MCA-66 and MCA-88
  • Installs in 1-Gang, 2-Gang, or 60mm Euro Electrical Boxes
  • PoE (802.3af) or 12VDC (Power Supply Not Included)
  • Wired/Wi-Fi
  • Shipping Dimensions: 8.75" (W) x 6" (H) x 2.56" (D) / (22.23 x 15.24 x 6.5cm)
  • Product Dimensions: 6.91" (W) x 4.53" (H) x 0.65" (D) / (17.55 x 11.51 x 1.65cm)
  • Shipping Weight: 2 lbs (0.91 kg)
  • Product Weight: 1.2 lbs (0.55 kg)
  • Network Connectivity: Wired or Wi-Fi (802.11 b/g/n - 2.4GHz)
  • Physical Connections: MicroSD Slot for Storage Expansion
  • Display: 7" (17.78 cm) 800 x 1280 (16.7M Colors)
  • Power Requirement(s): PoE (802.3af) or 12VDC @1A
  • Processor: Quad-core 64-bit Cortex™ A53
  • Storage Capacity: 16GB w/11.4 GB Free, Expandable via MicroSD



ce stamp



Product Manual: XTS7 Manual.pdf

Product Brief: XTS7 Product Brief.pdf

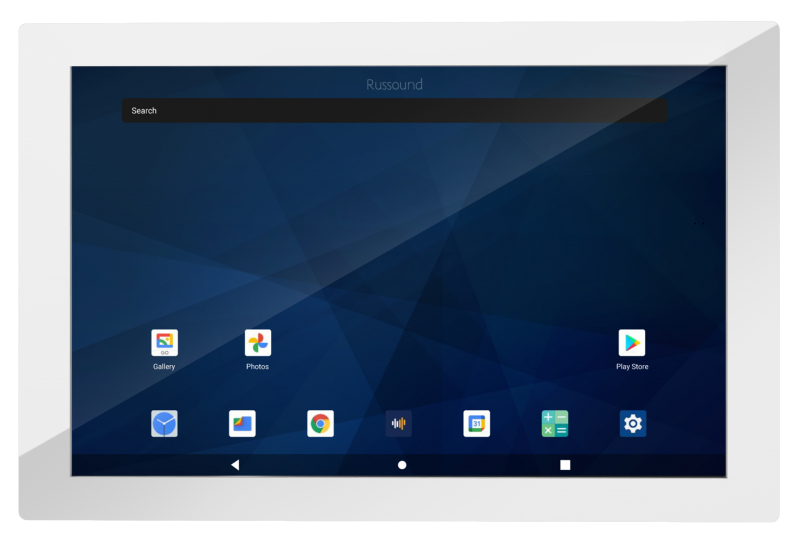

XTS7 Front: XTS7 Front.png

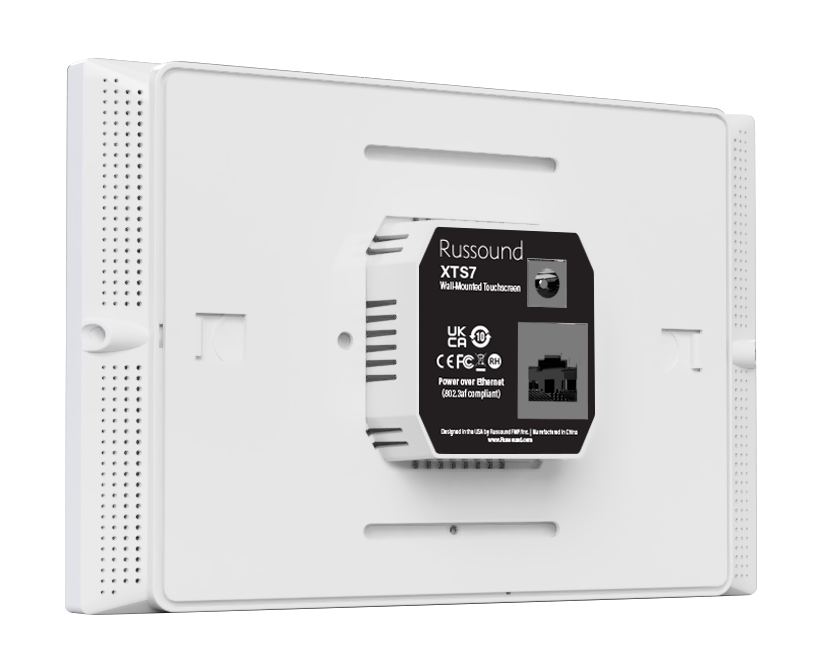

XTS7 Rear: XTS7 Rear.png
