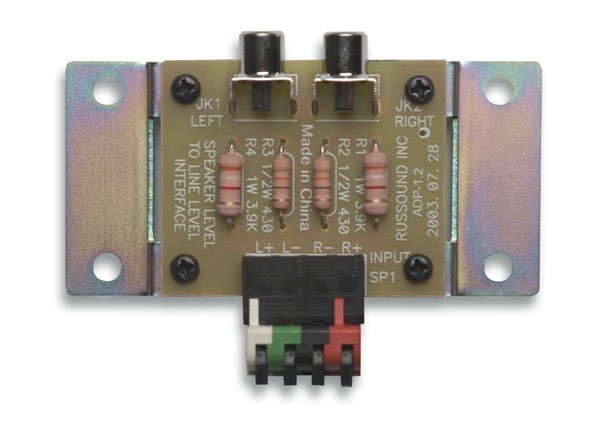

ADP-1.2 Speaker to Line-Level Adapter

Category: Expansion Devices

Recommended for use with CAA66 and MCA-66 to obtain line level outputs for zones without pre-amp outputs. Color-coded detachable 14-gauge snap connectors. Not for use with digital amplifiers.


  • Attenuates speaker-level audio from amp/receiver to line-level audio
  • Connects between amp/receiver and high-powered amplifier
  • Screwless removable snap connectors for easy connections
  • Accepts up to 14-gauge wire


  •  Power: 250 W/ch RMS continuous, 500 W/ch peak
  • Attenuation: -30dB
  • Input Connector: Screwless removable snap connector
  • Wire Size: Up to 14-gauge wire
  • Output Connectors: RCA female
  • Dimensions: 2-1/2 x 3-3/4 inches

ADP-1.2 Product Manual: ADP-1.2 Product Manual.pdf

ADP-1.2 Image: ADP-1.2.jpg
