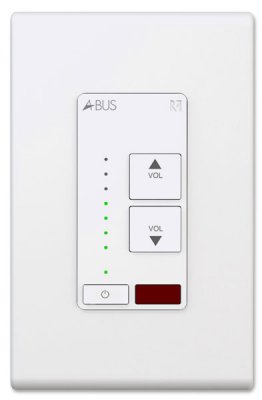

Featured Products A-K4 Amplified Keypad

Category: Keypads and Accessories

Simple and elegant, the A-K4 Amplified Keypad provides easy control of your music. Turn it on or off, select from up to six sources, or adjust the volume with just a touch - or use a remote control if you prefer.







  • Overview
  • Features
  • Specifications
  • Documents
  • Product Images

 As inconspicuous as a light switch, the A-K4 complements your decor. Its built-in amplifier powers your room speakers directly, or you can use its line outputs to feed an external amplifier or powered subwoofer.

The A-K4 works with any A-BUS hub or controller, as well as with A-BUS-ready receivers and A-BUS subzones on multiroom controllers.



A K4 Front panel Callouts



A K4 Back panel Callouts



  • Uncomplicated control of basic audio functions
  • Passes IR commands to connected source equipment
  • Variable line-level output allows connection to an external amplifier or powered subwoofer
  • Controllable by an A-BUS system remote



  • Shipping Dimensions: 3.0" (W) x 4.5" (H) x 2.5" (D), (7.6 x 11.4 x 6.4 cm)
  • Shipping Weight: 0.4 lbs (0.2 kg)
  • CAT-5e Connection: RJ-45
  • IR Control: Built-in IR receiver with pass-through
  • Max Cable Length: CAT-5, 250 ft (76 m) maximum
  • Power Requirement(s): 24 VDC, 660 mA
  • Speaker Connection(s): Screw terminal connectors
  • Speaker Impedance: 8 ohms per channel
  • User Controls: Power on / off, Source select (with multisource hub), Volume up / down



ce tuv stamp v2

A-K4 Product Manual: A-K4 Product Manual

A-K4 Flyer: A-K4 Product Flyer



A-K4: A-K4.jpg
