D1290 Twelve-Channel Digital Amplifier

SKU: D1290

Russound’s D-Series of amplifiers are synonymous with premium performance, reliability, and durability, forming the backbone of professional audio installations around the world. The newest generation builds upon the legacy of these prestigious products.

Each of these models is designed to expand an audio system into more rooms or areas or to add increased audio output for larger rooms or outdoor areas where a higher output volume is required.

These amplifiers pack a punch with up to 90 watts per channel on the D1290, these models utilize an advanced digital design which results in smaller chassis sizes than in any previous generation of Russound amplifiers. The D1290 is only a single rack-unit in height..Being able to reduce the size of the amplifiers was a key goal of the new design, but Russound didn’t want to reduce any features and even wanted to add more than we’ve ever offered in the past.

The new D1290 does just that by adding a new, easily configurable option to custom tailor the audio output for the desired application, from powering traditional speakers, to driving passive subwoofers added to any area of the home, indoors and out.

These new amplifiers give installers the flexibility and reliability they need to satisfy the needs of their clientele, all while keeping an acceptable project budget. And they deliver the high-quality audio performance that their customers expect.

  • 12-Channels @ 90W
  • Class D Amplification
  • Thermal Fan Cooling
  • High Dynamic Range
  • Slim 1U Chasis
  • Source Flexibility
  • Easy to Configure Audio Filter Options: Full Range Sound, Low Pass Filter & High Pass Filter
  • Control Flexibility: Always On, Signal Sensing & 12V Trigger
  • Rack mountable
  • 2 Year Warranty
  • Shipping Dimensions: 20.2"(W) x 4.9" (H) x 14.3" (D) (51.33 x 12.5 x 36.3 cm)
  • Shipping Weight: 10.6 lbs (4.8 kg)
  • Amplifier Channels: 12 channels 6 independent zones
  • Bridge: Yes
  • Frequency Response: 20Hz to 20kHz +/-3dB at 1W output into 4 or 8 Ohms
  • Fuse Rating: 10A, 250V FA
  • Input Impedance: >22k ohms Line Input
  • Input Sensitivity:
    620 mV for 90W @ 1kHz 4 Ohm One Zone
    690 mV for 45W @ 1kHz 8 Ohm One Zone
  • Power Output:
    90W /Channel, 1kHz One Zone Driven - 4 Ohm
    45W /Channel, 1kHz, One Zone Driven - 8 Ohm
    180W, 1kHz, One Zone Driven - 8 Ohm Bridged
  • Power Requirement(s):
    North American Model: 115-120VAC, 60Hz (800W Max)
    International Model (D1290i):220-240VAC, 50Hz (800W Max)
  • Signal to Noise Ratio: >90dB A-weighted
  • Speaker Connection(s): Detachable Screw-down, up to 12AWG
  • Trigger Input(s): 12V, Global
  • Line Input: Selectable: Bus A, Bus B, Zone
  • Warranty: Two Years



ce etl stamp 3137900

Product Manual: D-Series Manual

Product Guide: Russound D1290 Product Guide

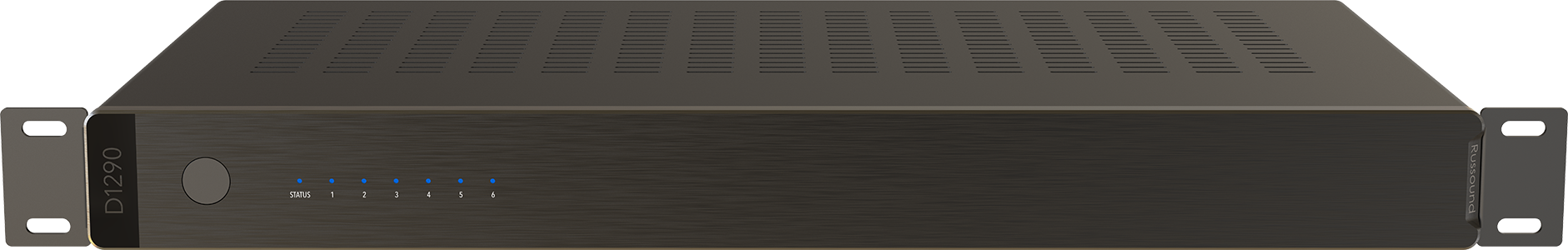

D1290 Front: D1290 Front

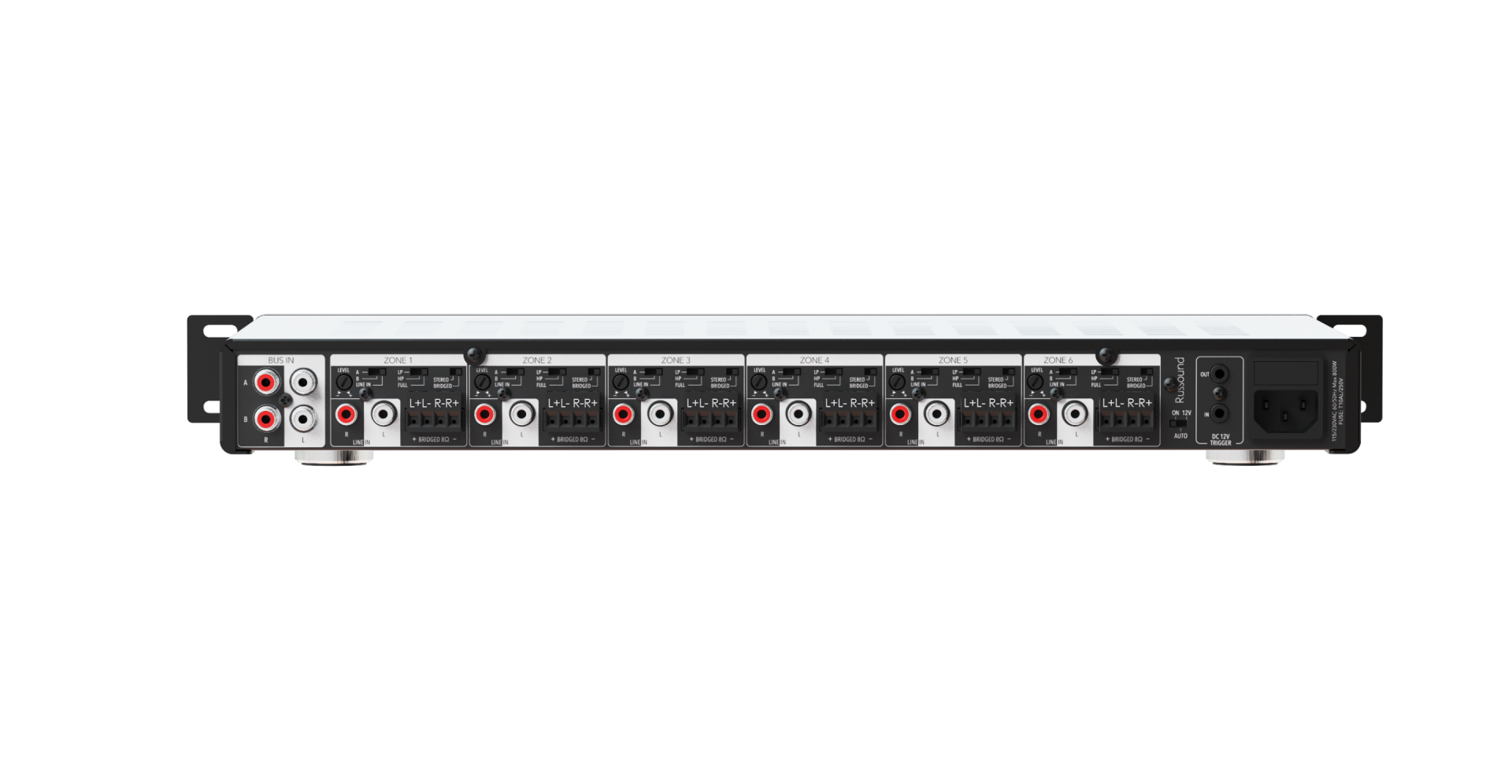

D1290 Rear: D1290 Rear

D1290 Rear with Connectors: D1290 Rear with Connectors

D1289 Rear Angle: D1290 Rear Angle
