The SS-6.2 allows you to switch up to six speaker pairs connected to a stereo amplifier. Offering high-quality audio performance, it also provides overload protection and long-term reliability.
SS-6.2 6 Pair Single Source Impedance matching Speaker Selector
Category: Single Source
The SS-6.2 offers two operating configurations: Impedance Matching and Bypass. Impedance-matching mode provides automatic overload protection for use even with high-power amplifiers. This mode allows multiple pairs of speakers to be safely connected to an amplifier using the built-in automatic impedance-matching circuitry.
Bypass mode is used for direct speaker switching with remote impedance-matching volume controls. This allows local control in each room as well as higher efficiency; however, in this mode the impedance matching and overload protection are not engaged.
Designed for use with 8-ohm loudspeakers, the SS-6.2 also provides safe connection to bridged amplifiers and even works in applications where there is a floating ground. It has spring-loaded speaker terminals for quick connection and can accommodate speaker wire up to 12 gauge.
- Designed for high audio quality and long-term reliability
- Provides impedance matching and automatic overload protection compatible with high-power amplifiers
- Bypass mode allows direct speaker switching when using remote impedance-matching volume controls
- Ten-year parts and labor warranty
- Shipping Dimensions: 14.7" (W) x 2.5" (H) x 10.3" (D), (37.2 x 6.4 x 26.0 cm)
- Shipping Weight: 3.1 lbs (1.4 kg)
- Connector(s): Spring terminals
- Frequency Response: 20 Hz - 20 kHz +/- 0 dB
- Max Wire Size: 12 AWG (2.4 mm)
- Min Trigger Level: 15 mV
- Power Handling: 200 watts per channel peak, 70 watts per channel RMS
SS-6.2 Product Manual: SS-Series Product Manual.pdf

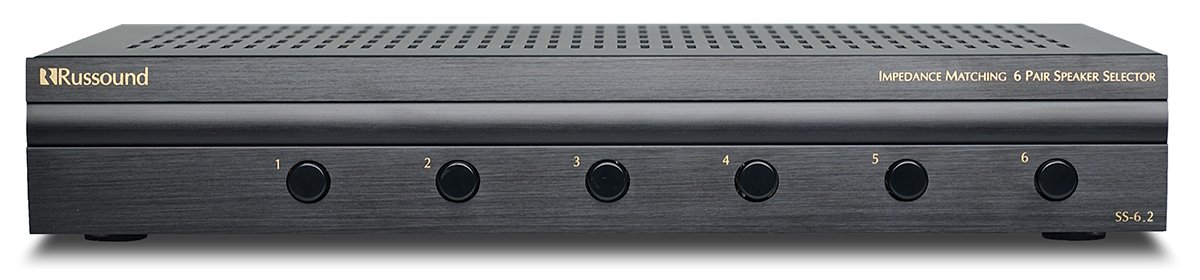

SS-6.2 Front Image: SS-6.2 Front.jpg
SS-6.2 Rear Image: SS-6.2 Rear.jpg
