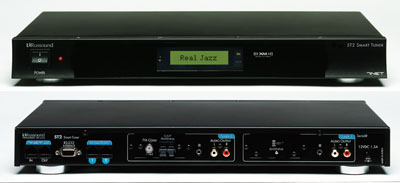

Product ManualSmart Dual Tuner w/ XM ST2-XM
The ST2-XM gives you the best of both worlds: XM® Satellite Radio and classic AM/FM. Separate tuners make it easy to listen to different programs at the same time. The XM module gives you access to the vast selection of programs and near CD-quality sound offered by XM.
When the ST2-XM is used with a Russound RNET® multiroom system, the powerful RNET technology provides reliable performance and easy operation. The system's Smart keypads and touchscreens display the AM/FM station and the XM channel, artist, and song title in real time.
A member of the ST2 Smart Tuner family, the Russound ST2-XM is a high-performance source component in a compact single-unit chassis, ideal for virtually any multiroom system.
Standard Features
- RNET® technology provides reliable performance and easy operation with Russound RNET system keypads and touchscreens
- Six banks of six presets per tuner - 72 total presets - with customizable preset and bank names
- Works with a wide variety of multiroom systems
- Integrates with virtually any RS-232 control device
- Dual tuners in a single-unit rack-mountable chassis
- Includes rack ears, AM/FM and XM antennas, audio cables, power supply, and remote control
| Shipping Dimensions |
12.0" (W) x 4.0" (H) x 21.0" (D) (30.5 x 10.2 x 53.3 cm) |
| Shipping Weight | 7.1 lbs (3.2 kg) |
| Antenna Connection XM | 50-ohm SMB |
| Antenna Impedance | AM: 300 ohms unbalanced FM: 75 ohms unbalanced |
| Communication Ports | RNET link ports: 2 RJ45 RS-232 interface port: 1 DB9 Keypad ports: 2 RJ45 IR inputs: 2 1/8-inch TS |
| Frequency Response | AM: 40 Hz to 3 kHz +/- 3 dB FM: 30 Hz to 15 kHz +/- 1.5 dB |
| Image Rejection | AM: 33 dB FM: 80 dB |
| Optional accessory | ST2-KP Smart Tuner Keypad |
| Power Requirement(s) | 12VDC 1.5A separate power supply |
| S/N Ratio | AM: 55 dBu FM: 6 dB max 12 dBu |
| Sensitivity | AM: 20 dB FM: 30 dB |
| Signal to Noise Ratio | AM: 45 dB FM: 60 dB |
| Stereo Separation | FM: 40 dB |
| Tuning Range | AM: 530 to 1710 kHz FM: 87.7 to 107.9 MHz XM: 2332.5 to 2345 MHz |
| XM Channels | 150 |
